1007780 GEMA IG06 Gema Injector

Name: 1007780 GEMA IG06 Gema Injector
Brand: Astar
Price: 1 USD

Brand Name : Astar

Model Number : IG06

Certification : CE , ISO9001

Place of Origin : China

MOQ : 1 Set

Price : Negotiable

Payment Terms : Western Union, T/T, L/C, D/A, D/P,, MoneyGram, PayPal, Alibaba Order

Supply Ability : 100 Sets Per Month

Delivery Time : 5 - 8 Work Days

Packaging Details : Carton

Model : IG06

Part number : 1007780

Material : Zinc Alloy

Size : Standard

Advantages : Quick Cleaning and Easy Handling

Applicatian : Convey Normal Organic Powders

Feature : Stable Powder Output

Powder hose length : Adjustable

Powder hose Φ : 11mm

Input pressure : 5.0 Bar

Contact Now

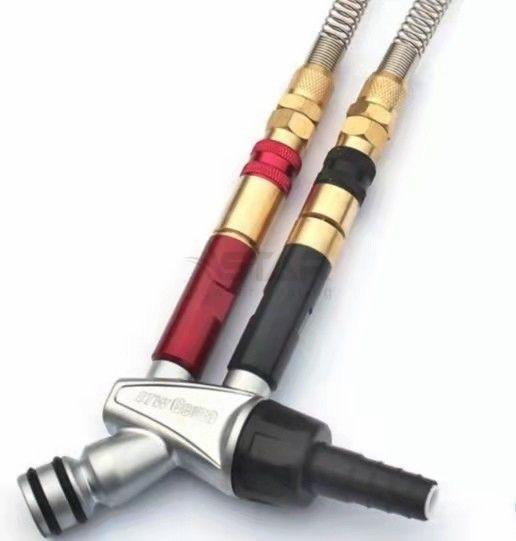

GEMA Zinc Alloy Material IG06 OptiFlow Powder Injector Part Number 1007780

Introdction

IG06 Optiflow powder injector is the latest type product. The feature is stable powder output and all pulg-in disassembled structure. All connections are plug-in types and not interchangeable.The injector can be disassembled without special tools. It's very easy to clean and easy to handle.

Field of Application

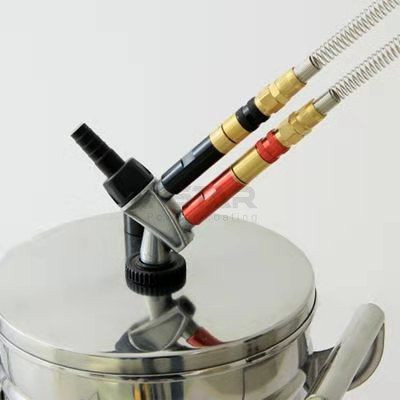

The OptiFlow injector is used for conveying normal organic powders between the powder hopper and the powder gun. The injector is supplied with a PTFE insert sleeve as standard. The OptiFlow Injector is a plug-in type and permits easy handling and quick cleaning. All connections are plug-in types. The injector can be disassembled without special tools.

Working Principle

When air flows through a nozzle into a cavity with an attached outlet in the continuation of the airflow, a vacuum will be created in the cavity
This effect is used now for aspirating powder through a suction opening - a powder/air mixture will be created.

Quick Details

Material	Zinc Alloy	Converying air nozzle	1.6mm
Model	IG06	Part number	1007780
Application	Powder Coating Machine	Powder hose Φ	11mm
Feature	Stable Powder Output	Powder hose Length	Adjustable
Characteristics	Quick Cleaning and Easy Handling	Input pressure	5.0 Bar

Advantages and selling points

1. Stable powder ouput
2. Plug-in components and disassembled structure
3. Durable material

4. Wide range of applications

5. All accessories are replaceable.
